Looking ahead to the future: plasma processing trends for the next decade

R&D market overview

To continue technology scaling in logic circuits and memory devices, atomic-level precision manufacturing is now required by chip makers and academics to provide control of surface structure at nanometer scale, ultra-high etch selectivity and low damage. We recognize the advantages of time-multiplexed processes versus continuous plasma technologies for processing materials at the atomic scale. Hence, we have developed the only control software that broadens the process capabilities of conventional ICP-RIE and PECVD tools to address time-multiplexed applications such as Atomic Layer Processing (ALE, ALD).

We anticipate innovations such as the use of hard-to-etch materials for MEMS, power semiconductor, integrated optics devices, and packaging. To remain at the forefront of new technologies, we have developed innovative solutions for the etch and deposition of materials such as glass, silicon carbide, sapphire, quartz, and other piezoelectrics.



CORIAL solutions

Our “made in France” plasma etch and deposition systems are recognized for their versatility, precision, and robustness.

Scientists from leading universities and R&D institutes around the world use our technologies to build advanced nano-scale structures, and to develop devices fabricated using new materials.

With diverse handling options, a range of plasma technologies, and a continuously growing library of process recipes, CORIAL is your research partner and trusted supplier of plasma processing solutions.

AdvantagesCORIAL Advantages

R

Processing flexibility with either continuous or pulsed plasma capability in the same reactor

R

Equipment with upgrade capability and investment protection from conventional RIE tools to advanced ICP-RIE systems

R

Cost-effective with small footprint, fully automatic operation, and low maintenance requirements

processEtch processes

We have broad experience processing a wide range of materials with precise control of the etch profile, fast etch rates, and excellent etch uniformity.

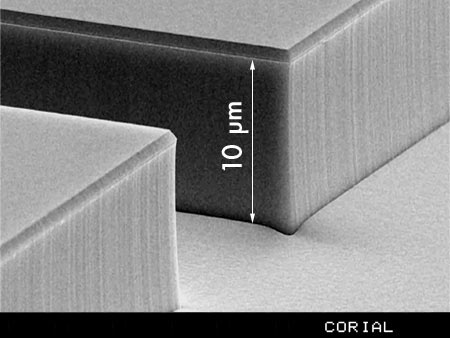

Fast RIE etch InP

  • Selectivity vs. mask > 50:1
  • Etch rate 80 nm/min
  • Uniformity ±3%

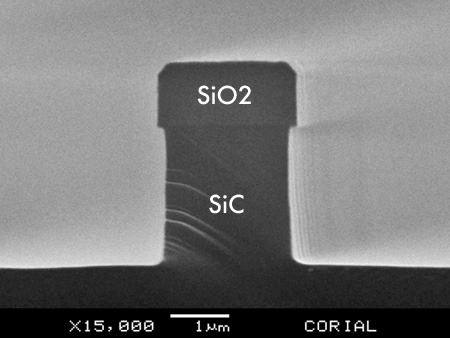

SiC etch for HEMT

  • Etch depth 2.5 µm
  • Etch rate > 700 nm/min
  • Etch profile 87°

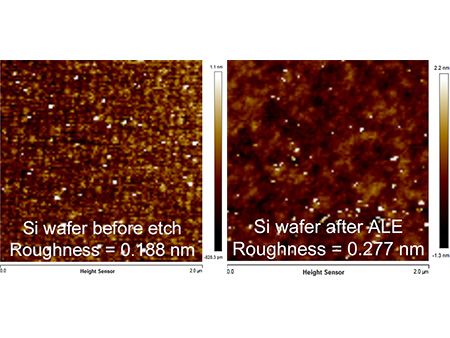

Si Atomic Layer etch

  • Plasma Enhanced ALE
  • Etch rate 1.675 nm/min
  • Atomically smooth surfaces

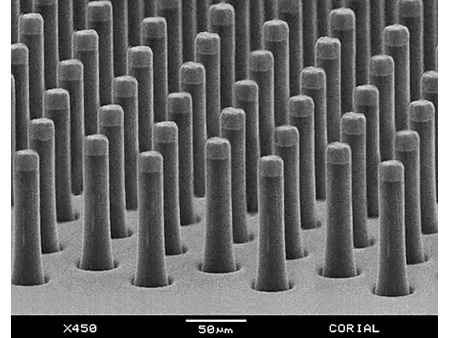

Quartz deep etch for MEMS and packaging

  • Etch depth 80 µm
  • Etch rate 0.6 µm/min
  • Selectivity 25:1

processDeposition processes

We deliver processes that ensure tight control of film stress, from tensile to compressive, and fast deposition rates without any compromise in deposition uniformity, or film quality.

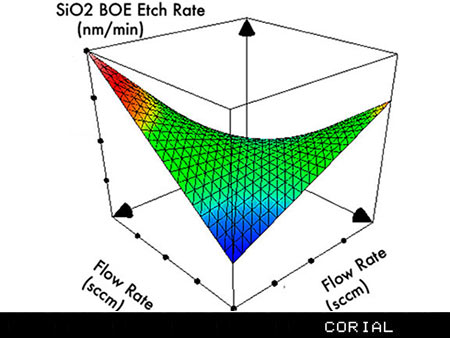

High-quality SiO2 deposition by ICP-CVD

  • Deposition rate 140 nm/min
  • Refractive index 1.47
  • BOE etch rate < 110 nm/min
  • Low Temperature

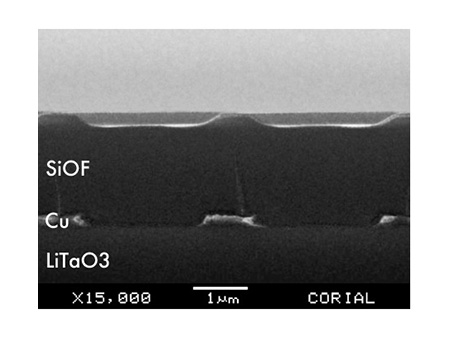

Planar SiOF deposition for SAW device passivation

  • Deposition rate 170 nm/min
  • Deposition temperature 70°C
  • Refractive index 1.42

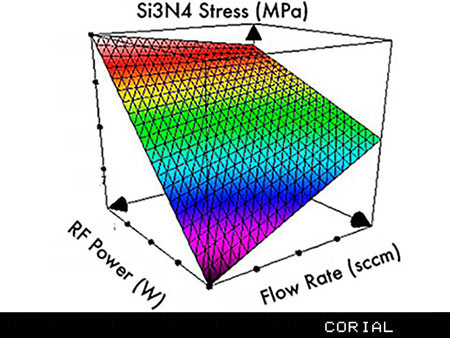

Stress-less Si3N4 deposition

  • Deposition rate 120 nm/min
  • Stress -10 ± 50 MPa
  • Deposition at 280°C

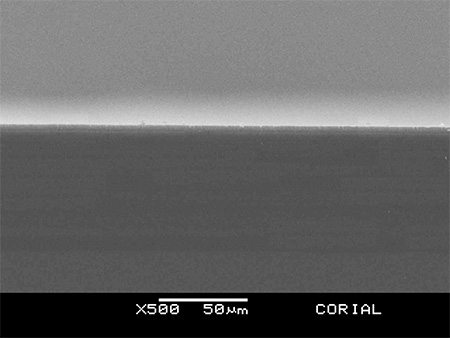

Thick SiO2 film deposition for hard mask application

  • 100 µm thick layers
  • Deposition rate 550 nm/min
  • No manual cleaning

processProducts

Corial 200S process

Corial-200S
  • RIE system with fixed cathode
  • Accepts small wafer pieces up to full 200 mm wafers
  • Silicon, silicon compounds, metals, and polymers etch with fluorinated gases

Corial 200R process

Corial-200R
  • Easy-to-use RIE system
  • Modular design with tiered upgrades available
  • Suitable for etching silicon-based compounds, metals, and polymers

Corial 210RL process

Corial-210RL
  • Flexible solution for reactive ion etching
  • Compatible with chlorinated chemistries
  • Silicon, silicon compounds, polymers, III-V & II-VI compounds and metals etch

Corial 200I process

Corial-200I
  • For single wafers over up to 200 mm, dies or packaged dies
  • Fluorinated and oxygen based chemistries
  • Silicon compounds and polymer etching

Corial 210IL process

Corial-210IL
  • ICP-RIE etch system with load-lock for R&D
  • Fast etch rates for silicon, oxides and polymers
  • Bosch process for silicon & deep etch of hard materials in the same reactor

Corial D250 process

Corial-D250
  • PECVD system
  • In-situ plasma cleaning
  • High quality SiO2, Si3N4, SiOCH, SiOF, SiC and aSi-H films

Corial 210D processprocess

Corial-210IL
  • ICP-CVD system
  • Low temperature deposition
  • High quality SiO2, Si3N4, SiOCH, SiOF, SiC and aSi-H films
