Anisotropic RIE etching supported by a wide range of processes

Corial 210RL RIE etch system in brief

The Corial 210RL offers a flexible solution for reactive ion etching of wafer pieces, or up to full 200 mm wafers.

Designed with a vacuum load-lock, the Corial 210RL provides RIE capabilities over a variety of materials including silicon, silicon compounds, polymers, III-V and II-VI compound semiconductors, and metals.

With a small footprint, and a modular design approach supporting tiered upgrades, this etch tool is ideal for R&D centers.

Key BenefitsKey benefits

R

FLEXIBILITY

Load lock enables using a combination of fluorinated and chlorinated chemistries in the same tool

System can be upgraded from a basic RIE tool to an advanced ICP-RIE system with a vacuum load lock

R

LOW COST OF OWNERSHIP

Reactor design and retractable liner increase time between cleans and reduce clean time

Unique shuttle (carrier) design, combined with a standard cathode, offer a cost-effective and fast reactor adaptation, suitable for multiple applications and substrate types

R

HIGH PERFORMANCE

Load lock ensures stable and repeatable process conditions

Optimized helium back side cooling of the substrate for excellent process control

Related processesRelated processes

Our extensive process library for the Corial 210RL etcher supports a wide range of materials.

The Corial 210RL uses fluorinated reactive gases for Si, SiO2, Si3N4, Ge, W, Ta, TaN, Ti, TiN, TiW, Nb, NbN, Mo and polymer etching. To structure materials such as GaN, AlGaN, GaAs, InP and metals as Al, Cr, Ti, this RIE etcher uses CH4/H2 and chlorinated reactive gases.

R&D is the main market served by the Corial 210RL.

Silicon Dioxide (SiO2) etch with RIE plasma technology

Silicon Dioxide (SiO2) etch with RIE plasma technology, on 150 mm wafer

Silicon Dioxide (SiO2) etch with RIE plasma technology, on 150 mm wafer

R&D

  • Etch rate 50 nm/min
  • Etch profile > 88°
  • Uniformity ±2%

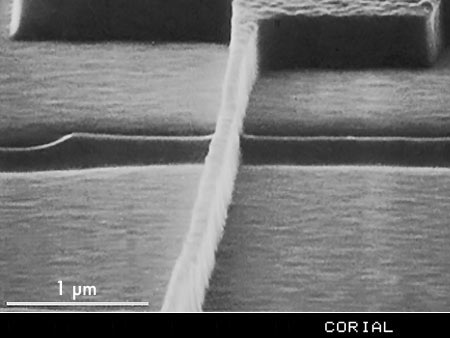

Silicon (Si) etch with RIE plasma etch technology

RIE etching of Si on 100 mm wafer

RIE etching of Si on 100 mm wafer

R&D

  • Etch depth 500 nm
  • Etch rate 120 nm/min
  • Etch profile > 85°

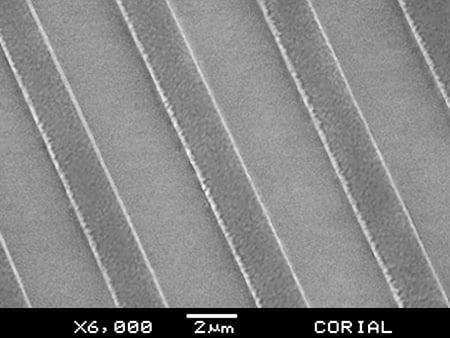

Tantalum (Ta) etch with RIE plasma technology

Low pressure RIE etching of Titanium on 150 mm wafer

Low pressure RIE etching of Titanium on 150 mm wafer

R&D

  • Etch profile > 85°
  • Etch rate > 90 nm/min

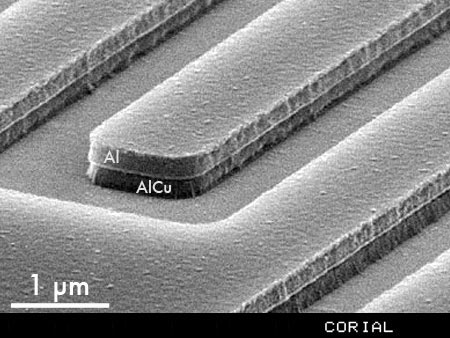

Al/Cu etch with RIE plasma technology

Al/Cu etch with RIE plasma technology, on 150 mm wafer

Al/Cu etch with RIE plasma technology, on 150 mm wafer

R&D

  • Etch rate 130 nm/min
  • Etch profile > 85°

UpgradesIcon

The Corial 210RL RIE etch system can be thoroughly customized with a wide range of features.

Additional gas inputs

Additional gas inputs

Additional gas inputs (up to 8) for more complex process gas combinations

Chamber for sputter-etch

Chamber for sputter-etch



The RIE process chamber is designed for etching and/or sputtering of thin films on any kind of substrate, up to 200 mm diameter. The reactor is equipped with a removable liner to collect etch by-products and/or sputtered materials, to increase time between cleans

ICP reactor

ICP reactor 200 Series

The ICP reactor is designed for applications requiring a high-density plasma source. The ICP source results in improved etch rates, better uniformity, selectivity, and profile control

Light tower

Light tower for easy visualization of the plasma processing sequence

The signal light tower provides an easy-to-view indicator of the system’s processing status

Laser interferometry

End point detection by laser interferometry to enhance etch control through automated measurement of etch rate and etch depth

End point detection by laser interferometry to enhance etch control through automated measurement of etch rate and etch depth
