High quality films deposition at low temperature, adaptable to a wide range of substrate sizes

Corial 210D ICP-CVD system in brief

The Corial 210D ICP-CVD system is ideal for R&D centers, and offers a wide range of applications for the specialty semiconductor markets.

The Corial 210D high density plasma system is based on CORIAL’s latest generation of 2 MHz helical ICP reactor. It is equipped with separate gas injection for SiH4 and dopants, to deposit high quality SiO2, Si3N4, SiOCH, SiOF, SiC and aSi-H films at low temperature (<150°C)

High-temperature reactor walls supports short plasma cleaning times and low added particles.

Featuring a vacuum load lock, the Corial 210D delivers stable process conditions and short pump-down times.

Our COSMA Pulse software enables pulsed or time-multiplexed processes, to support applications ranging from deposition of super lattices for stress relief, to Atomic Layer Deposition films, all available on a conventional Corial 210D system.

A variety of substrate shapes and sizes, from wafer pieces to 150 mm wafers, can be processed in the Corial 210D ICP-CVD system.

Key BenefitsKey benefits

R

PROCESS FLEXIBILITY

The RF match box wide operating range (from 100 W to 2000 W) accommodates a wide range of customer applications in RIE, ICP-RIE, and ICP-CVD modes

The vacuum load lock enables using a combination of fluorinated and chlorinated chemistries in the same tool

R

BEST REPRODUCIBILITY

Load lock operation and heated chamber walls offer stable and repeatable process conditions

Novel cathode design and efficient helium back side cooling of the shuttle and substrate ensure uniform temperature control during deposition

R

CONFIGURATION FLEXIBILITY

Our unique shuttle (carrier) design, combined with a standard cathode, enable rapid, cost-effective reactor modification to support different applications and processes, different sample shapes, and sizes, and to support future requirements.

R

HIGH UPTIME

The reactor’s heated walls enhance plasma cleaning efficiency and reduce cleaning requirements

Only 15 minutes are required to perform a reactor clean

Related processesRelated processes

The Corial 210D can serve a variety of applications in specialty semiconductors markets including:

  • Advanced Packaging
  • Wireless Communication
  • R&D

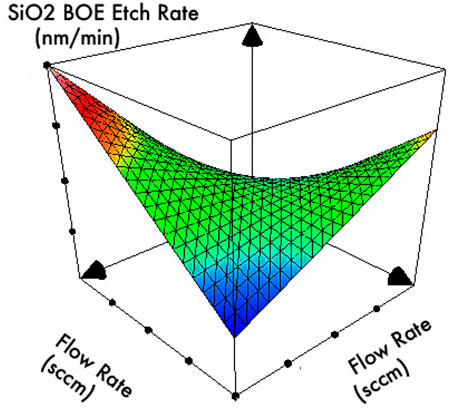

Low temperature Silicon Dioxide (SiO2) ICPCVD deposition process

High quality SiO2 deposition by ICP-CVD

High quality SiO2 deposition by ICP-CVD

R&D

  • Deposition rate 140 nm/min
  • Refractive index 1.47
  • BOE etch rate < 110 nm/min

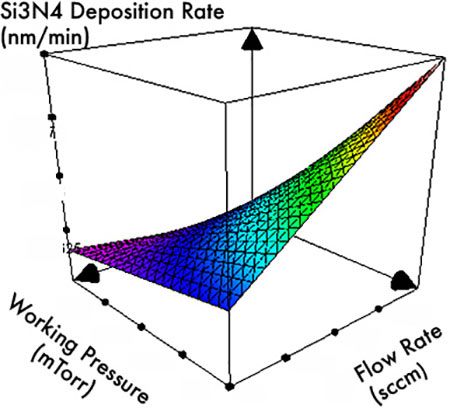

Fast Silicon Nitride (Si3N4) ICPCVD deposition process

Low temperature Si3N4 deposition by ICP-CVD

Low temperature Si3N4 deposition by ICP-CVD

Advanced packaging

  • Deposition rate 150 nm/min
  • Deposition temperature 70°C
  • Stress -100 ± 50 MPa

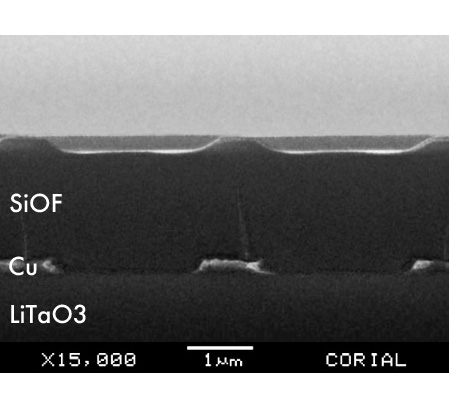

Fluorinated Silicon Oxide (SiOF) ICPCVD deposition for SAW devices passivation

Planar SiOF deposition with ICP-CVD plasma technology

Planar SiOF deposition with ICP-CVD plasma technology

Wireless Communication

  • Deposition rate 170 nm/min
  • Deposition temperature 70°C
  • Refractive index 1.42

UpgradesIcon

The Corial 210D ICP-CVD system can be thoroughly customized with a wide range of features.

Additional gas inputs

Additional gas inputs

Additional gas inputs (up to 8) for more complex process gas combinations

Liner for sputter-etch

Liner to collect sputtered materials

Al coated liner to collect sputtered materials in metal RIE sputter-etch mode

CORTEX® Pulse software

COSMA Pulse software adds Atomic Layer Etching and Si DRIE (Bosch Processes) capabilities

CORTEX® Pulse software adds Atomic Layer Deposition capabilities to the Corial 210D by enabling pulsation of any process parameters – including gas flow rate, working pressure, RF power, LF power…

Variety of pumps

Dry Vacuum Pump and TMP pump with varied pumping rate for increased control over the process chamber pressure

Dry Vacuum Pump and TMP pump with varied pumping rate for increased control over the process chamber pressure

Variety of RF power supplies

Higher and lower watt power supplies with automatic matching network

Higher output power supplies with automatic matching network

Light tower

Light Tower

The signal light tower provides an easy-to-view indicator of the system’s processing status

Laser interferometry

End point detection by laser interferometry to enhance etch control through automated measurement of etch rate and etch depth

End point detection by laser interferometry to enhance process control through automated measurement of etch/deposition rate, etch depth and deposition thickness
